Rolled copper foil for batteries
Prototype*HS1200/HS1200-V2 ー High strength copper foil for battery
- *HS1200-V2 is in the prototype stage to confirm mass production feasibility. For technical data, SS curves, and other unspecified characteristics, please contact us through the inquiry form.
Features of HS1200/HS1200-V2
The higher strength and thinness of the foils means more current collectors can be stacked with batteries of the same volume, contributing to improved battery energy density.
HS1200 is a copper foil strengthened by adding 0.12% Sn. HS1200-V2 achieves even higher strength through process control using the same chemical composition as HS1200. It helps suppress the expansion and contraction of the anode associated with the increased Si concentration in Si active material, aimed at improving battery capacity.
Table 1. List of properties
| Product name |
Composition （％） |
Thickness （μm） |
Tensile strength （MPa） |
Elongation （％） |
Rough ness （μm） |
|---|---|---|---|---|---|
| HS1200 | Cu-0.12Sn | 6～ | 560 | 2.0 | 0.4 |
| HS1200-V2 | Cu-0.12Sn | 6～ | 640 | 1.5 | 0.4 |
| Tough pitch copper | Cu >99 | 5～ | 470 | 1.5 | 0.4 |
- Properties are shown as typical values, which are not guaranteed values.

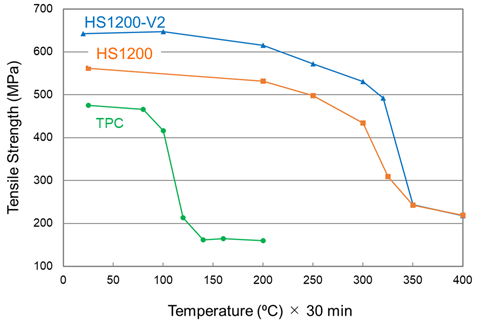

Softening properties
- HS1200 has excellent thermal resistance, enabling high strength to be maintained, even at high temperatures.
- HS1200-V2 can maintain higher strength than HS1200 in the temperature range below 300°C.
